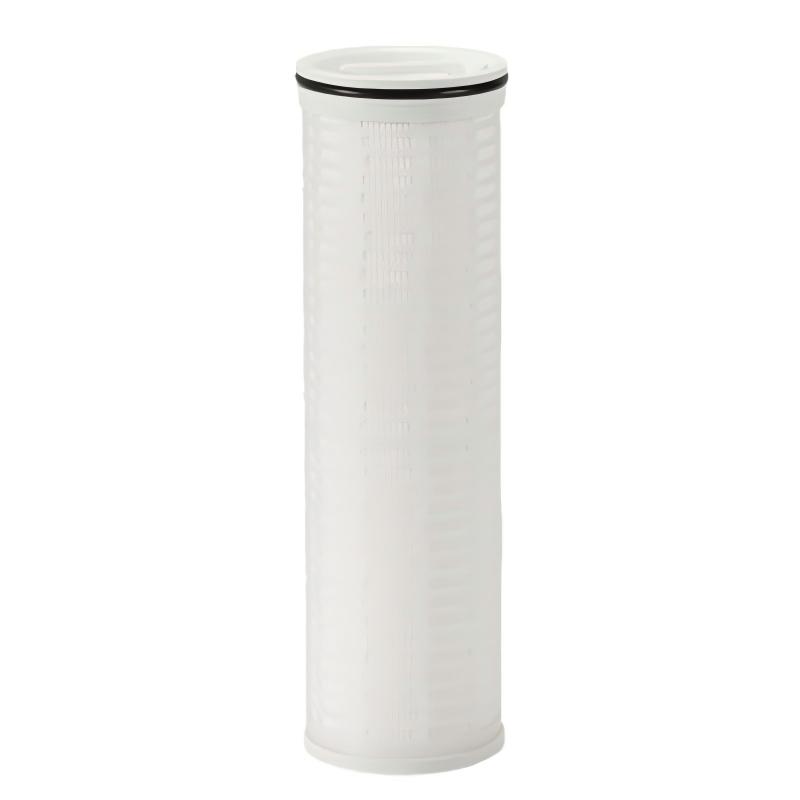

HFU660UY050J replacement
1. Core Specifications
Parameter | Value |
Filtration Rating (Absolute) | 5 μm |
Cartridge Length | 60 inches (1524mm) |
Outer Diameter (OD) | 6.0 inches (152.4 mm) |
Inner Diameter (ID) | 3.5 inches (89 mm) |
Flow Direction | Inside → Out |
Core Design | Coreless (All-Plastic Construction) |
Seal Material | Buna-N / Nitrile (Code: J) |
2. Material Construction
• Filter Media: Microfiber polypropylene, glass fiber
• Support/Drainage Mesh: Polypropylene
• End Caps & Handle: 10% Glass-Filled Polypropylene (GF PP)
• Outer Wrap: Polypropylene
• O-Ring Seal: Nitrile Rubber (Buna-N)
3. Performance Data
Performance Parameter | Value |
Effective Filtration Area | 17.7 m² |
Nominal Max Flow Rate (Water) | 1890 (500) |
Max Operating Temperature (Aqueous) | 82 °C (180 °F) |
Max Differential Pressure (82°C) | 3.4 bar (50 psi) |
Typical Change-Out Pressure Drop | 2.0–2.5 bar |
4. Operating Conditions
Operating Parameter | Value |
Max Operating Pressure | 10.3 bar (150 psi) |
Operating Temperature Range (Aqueous) | 4–82 °C (39–180 °F) |
pH Range (Operating) | 1–14 |
Recommended Flow Velocity | 0.1–0.3 m/s |
5. Pressure Drop on Flow Rate
Flow Rate | Pressure Drop (Clean Cartridge) |
473 (125) | 0.14 bar (2 psi) |
946 (250) | 0.28 bar (4 psi) |
1419 (375) | 0.55 bar (8 psi) |
1890 (500) | 0.83 bar (12 psi) |
Note: Data is measured at 23°C (73°F) with clean water, for reference only.
6. Key Features
• High flow rate per cartridge
• Inside-to-outside flow traps contaminants internally
• Coreless design reduces disposal waste
• Direct interchange with Pall HFU series housings
• High dirt-holding capacity & long service life
7. Typical Applications
• Industrial Water Pre-Filtration
• Process & Cooling Water Filtration
• Chemical Solution Filtration
• Pharmaceutical & Electronics Water Pre-Treatment
• Food & Beverage Water Purification
• Wastewater Treatment
8. Regulatory Compliance
• Food Contact Compliance: Conforms to FDA 21 CFR Part 177.1520 (for polypropylene materials) for food and beverage applications.
• Pharmaceutical Compliance: Manufactured in accordance with cGMP (Current Good Manufacturing Practices) standards, suitable for pharmaceutical water systems.
• Material Safety: All materials are non-toxic, non-leaching, and meet relevant international safety standards for industrial and potable water applications.
• RoHS Compliance: Complies with EU RoHS Directive (2011/65/EU) and subsequent amendments, restricting hazardous substances in electrical and electronic equipment.
• REACH Compliance: Meets EU REACH Regulation (EC) No. 1907/2006, ensuring the safety of substances used in the product.
Specifically designed to replace PALL HFU660UY050J high flow filter cartridge, the polypropylene filter membrane has good chemical compatibility, corrosion resistance and temperature resistance, compatible with industrial large flow filtration systems. It can be used in chemical medium filtration, wastewater pre-treatment, food and beverage filtration and other scenarios. The filtration efficiency is consistent with the original brand, and the cost is only 1/3-1/2 of the original brand.
